stop valve
Unit: MPa

Item

Pressure value

Nominal pressure

6.4

Body testt

9.6

Seal test

7.0

Pneumatic test

0.9

Operating temperature

≤180℃

Medium

water Steam oil
J91WH cutting sleeve stop valve

Model

Body

Joint

valve handle

Nut cap

packing

J91H-64

20#

20#

2Cr13

20#

Flexible Graphite, PTFE

J91W-64P

304SS

304SS

304SS

304SS

Flexible Graphite, PTFE

J91W-64R

316SS

316SS

316SS

316SS

Flexible Graphite, PTFE
Design and manufacture：GB/T12224-2005 / JB/T7747-1995
Connection Type： cutting sleeve
Structure feature：Cone cover; mobile valve clack
Valve inspection and test：JB/T9092-1999

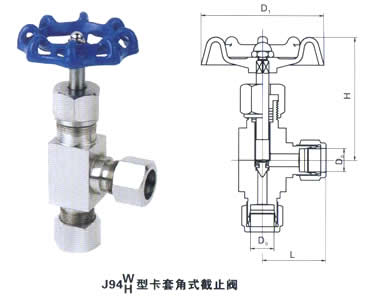

J94WH cutting sleeve Angle type stop valve

D0

D1

L

H

φ8

φ70

38

92

φ10

φ70

38

92

φ12

φ70

39

92

φ14

φ70

40

94

φ18

φ80

42

100
